RFCOM-708 Intelligent Display and Control Integrated Machine

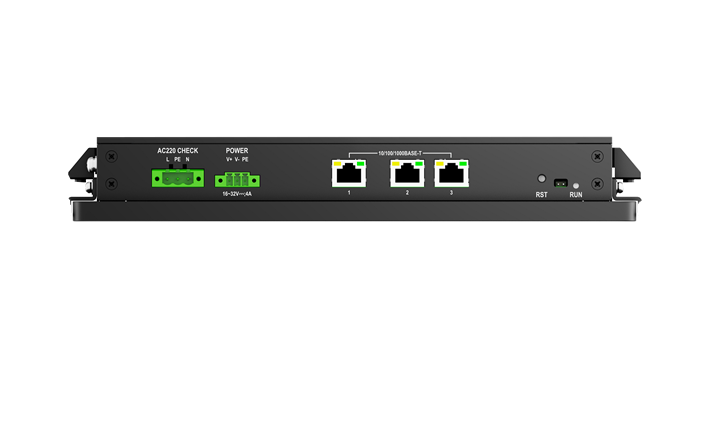

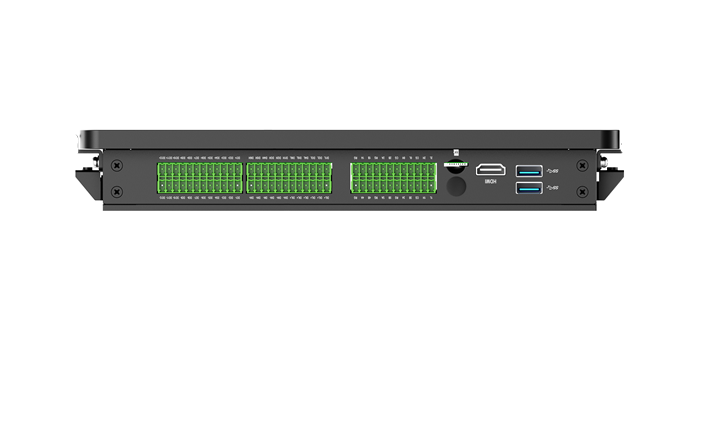

RFCOM-708 series communication management machine is an integrated operating system platform with a screen, suitable for scenarios such as the power industry. Equipped with a high-performance, industrial-grade wide-temperature processor. Supports 3 1000M Ethernet ports, 2 USB3.0 ports,1 HDMI port,1 micro SD port, 5 RS485 ports, 3 CAN buses, and 12*DI and 12*DO ports. Optional SSD hard drive and 4G communication module. Supports a wide DC voltage input range of 16-32V. Supports mutual transmission among Modbus RTU, Modbus Tcp and IEC104 protocols.

consult

After-sales service email：service@cloudnineinfo.com

After-sales service hotline：400-6628-128

  • It integrates display and control

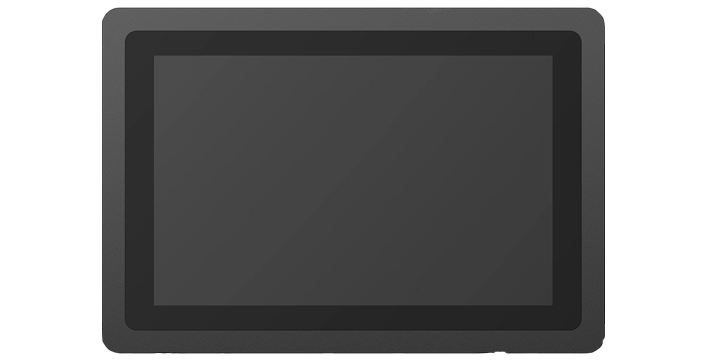

    Equipped with a 10.1-inch high-definition large screen, it integrates real-time on-site status monitoring and equipment control into one.

  • Strong domestic computing power and interfaces

    It adopts the RK3568J quad-core processor, featuring multiple network ports, serial ports, DI/DO, and has a high degree of integration.

  • Industrial-grade high-reliability design

    Wide temperature and wide voltage (16-32V DC, -20 to 70℃), fanless heat dissipation, ensuring long-term stable operation in complex industrial environments.

  • Convenient remote operation and maintenance management

    Support WEB remote configuration, online upgrade and message viewing to improve operation and maintenance efficiency.

Application scenario

  • Intelligent manufacturing and industrial automation

  • Smart energy

  • Robot

  • Smart City
    Technical specification
    Name Specifications
    System
    CPU RK3568J，32Bit
    Operating system Debian
    Storage DDR4:4GB；EMMC:32GB；SSD（256/512/1024GB Optional）
    LED System：Power*1,RUN*1
    LAN : 1000M*3(Link*1,Act*1)
    Others RTC/Hardware watchdog
    Overall machine characteristics
    Weight 2.43kg(No ear loops)
    Size 276mm*190mm*40mm
    Input voltage DC:16-32V
    Power consumption (static) <7W
    Power consumption (full load <12W
    Working environment temperature -20～60℃
    Relative humidity of the working environment (non-condensation) 5%～95%(No condensation）
    Certification test
    ESD GB/T 17626.2-2018 Contact: 6KV, Air: 8KV
    EFT GB/T 17626.4-2018 Class 3
    SURGE GB/T 17626.5-2018 Class 3
    RE/CE/RS/CS GB/T 9254.1-2021 Class A
    Software functions
    Communication Protocol Supports the Modbus RTU communication protocol
    Support Modbus TCP communication protocol
    Supports IEC104 communication protocol
    Communication machine software Supports data processing and protocol conversion.
    Support modification of network port sorting and IP configuration.
    Supports 485 configuration baud rate, supports stop bit and check bit modification, and supports firmware upgrade
    Safety Features Supports user hierarchical management and password protection
    Web-end functionality Supports IP search for management machines
    Supports IP modification
    Supports login with different permission accounts supports configuration import supports configuration summoning
    Support configuration export. COM configuration export /TCP configuration export/point table configuration export supports operation monitoring
