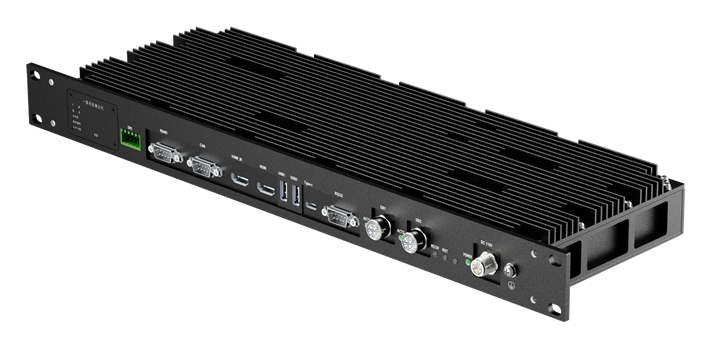

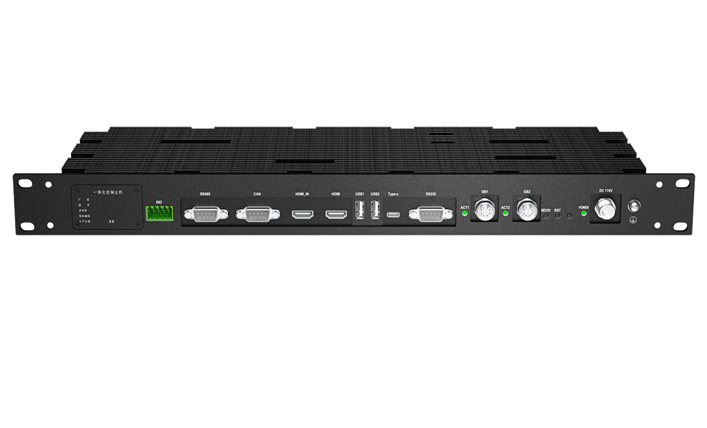

RFCOM-1208 1U Edge Computing unit

The RFCOM-1208 Internet of Things Communication Management Machine is a multi-interface, high-performance communication management terminal designed for industrial control environments. Equipped with the Orin NX module of the NVIDIA Jetson platform, the device integrates an 8-core processor with a main frequency of up to 2Ghz and adopts a fanless and silent design, adapting to complex industrial environment applications. Supports interfaces such as RS485/ Ethernet /CAN/DIDO/USB/HDMI; The expandable interface supports dual solid-state (x4+x2), built-in TF card slot, built-in fan interface, built-in MIPI, built-in 5G M.2 interface, etc. Support WEB remote configuration and control; Supports ModbusRTU and ModbusTCP software features.

consult

After-sales service email：service@cloudnineinfo.com

After-sales service hotline：400-6628-128

  • High-performance industrial computing

    Equipped with the NVIDIA Jetson Orin NX module (8-core 2GHz processor, adaptable to harsh environments ranging from -40℃ to 70℃, meeting the real-time data processing requirements of industrial control scenarios.

  • Full interface extension capability

    It integrates six types of industrial interfaces such as RS485/CAN, supports dual solid-state drives (PCIe 4.0×4+×2), 5G M.2 modules and TF card expansion, and realizes the integration of data acquisition, storage and transmission.

  • Intelligent remote control

    Supports web-based configuration and Modbus protocol (RTU/TCP), with built-in fan /MIPI interfaces, allowing for flexible connection to sensors or edge devices and reducing operation and maintenance costs.

  • Industrial reliability

    The multi-interface redundant design is compatible with 5G high-speed communication and local high-speed storage, ensuring stable operation 24/7 in complex environments.

Application scenario

  • Intelligent manufacturing and industrial automation

  • Energy and electricity

  • Rail traffic

  • Smart City
Intelligent manufacturing and industrial automation, energy and power, rail transit, smart cities, etc
    Technical specification
    Name Specifications
    Optional module </td Jetson Orin NX module
    Model ONX 16GB、ONX 8GB
    Core architecture Ampere GPU + Arm Cortex-A78AE CPU
    CPU -8 cores (2 clusters, 4 cores/clusters)
    - Maximum frequency: 2 GHz
    GPU -NVIDIA Ampere architecture
    -CUDA cores: 1024
    -Tensor Cores: 32
    AI computing power（INT8） - 100 TOPS（16GB）
    - 70 TOPS（8GB）
    內(nèi)存（LPDDR5） - 16GB 128-bit
    - 8GB 128-bit
    Storage (KEY-M) NVMe solid-state drive available from 128GB to 1TB
    Display interface - HDMI 2.1 x 1
    - Maximum resolution of 4K30
    Video input interface - HDMI-NI
    USB interface - 2x USB TYPE-A 3.2 Gen2x1（10 Gbps）
    - 1x USB 2.0 TYPE-C（Burn）
    Ethernet - 2x 10/100/1000BASE-T Ethernet
    M12 Gigabit Ethernet port
    CAN - 2x CAN FD（Isolation）
    - Support ISO 11898-1:2015
    - Maximum baud rate：1 Mbps
    RS485 - 2x RS485（Isolation）
    - TA/EIA-485A
    - Maximum baud rate：250 Kbps
    DIDO DIH x2/DIL x2
    DOH x2/DOL x2
    Module power consumption - ONX 16GB：10W/15W/25W
    - ONX 8GB：10W/15W/20W
    Working temperature -10°C~50°C
    Mechanical dimensions 482.6mm*154mm*44.5mm
    Extension Interface Supports dual solid-state drives (x4+x2), built-in TF card slot, built-in fan interface, built-in MIPI, built-in 5G M.2 interface, etc
    Applicable scenarios Edge Computing (Smart Cameras, Industrial Automation
