RFCOM-108

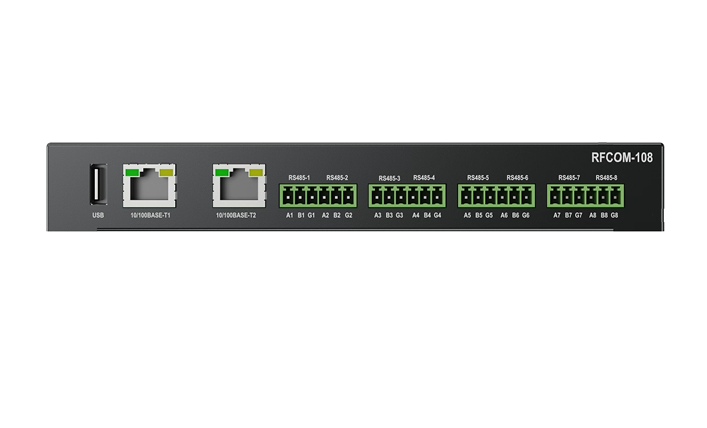

RFCOM-108 Internet of Things Communication Management machine is a multi-port, high-performance RS485 communication management terminal designed for industrial control environments. The device integrates an ARM A7 processor with a main frequency of up to 798Mhz and adopts a fanless and silent design, adapting to complex industrial environment applications. Supports interfaces such as RS485/ Ethernet; Support WEB remote configuration and control; Supports ModbusRTU and ModbusTCP software features.

consult

After-sales service email：service@cloudnineinfo.com

After-sales service hotline：400-6628-128

  • Wide temperature and wide pressure design

    It supports a working temperature range of -20 to 70℃ and a wide DC voltage input of 9 to 30V, adapting to complex industrial environments.

  • Multi-interface communication capability

    It is equipped with dual network ports, multiple RS485 channels, and supports WiFi and 4G, meeting diverse access requirements.

  • Fanless and silent structure

    It adopts a fanless heat dissipation design, operates with low power consumption, and is suitable for scenarios with high dust and high vibration.

  • Rich in protocols and remote management

    It is equipped with multiple industrial protocols (Modbus/IEC104/MQTT) and supports WEB remote configuration and monitoring.

Application scenario

  • Smart energy

  • Intelligent manufacturing and industrial automation

  • Smart City
    Technical specification
    Name Specifications
    System
    CPU IMX6ULL@792Mhz，32Bit
    Operating system Linux
    Storage DDR:4G bit；（EMMC:8G bit，NAND flash:4G bit Choose one of the two）
    LED System：Power*1,RUN*1*1
    LAN：10/100M*2(Link*1,Act*1)
    Wireless：4G
    Communication：485
    Reserved：ALARM and DIAG
    Others RTC/Console port（Reserved）
    Overall machine characteristics
    Weight 0.7kg(No ear loops)
    Size 195.6mm*118mm*28mm
    Input voltage DC:9-36V
    Power consumption (static) <3W
    Power consumption (full load <5W
    Working environment temperature -40～80℃
    Relative humidity of the working environment (non-condensation) 5%～95%(No condensation）
    Certification test
    ESD GB/T 17626.2-2018 Contact 8KV, air 15KV
    EFT GB/T 17626.4-2018 Class 4
    SURGE GB/T 17626.5-2018 Power supply Class 3，Signal Class 4
    RE/CE GB/T 9254.1-2021 Class A
    Software functions
    Communication protocol Support the Modbus RTU communication protocol
    Support Modbus TCP communication protocol
    Supports IEC104 communication protocol
    Communication machine software Support data processing and protocol conversion
    Support modification of network port sorting and IP configuration
    Supports 485 configuration baud rate, supports stop bit and check bit modification, and supports firmware upgrade
    Safety features Support user hierarchical management and password protection
    WEB end function Support IP search for the management machine
    Support IP modification
    Support login with different permissions account support configuration import support configuration summoning
    Support configuration export. COM configuration export /TCP configuration export/point table configuration export supports operation monitoring
